Description

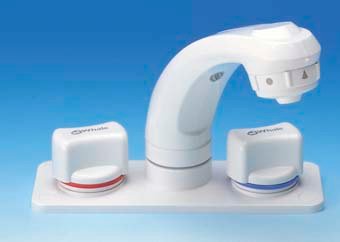

ELEGANCE, COMBINATION, MIXER, SHOWER UNIT (M620)
BOX QUANTITY : 10
USE THE ELEGANCE COMBINATION MIXER SHOWER UNIT AS A TAP AND A SHOWER. THE ADjUSTABLE HANDSET ENABLES YOU TO SET THE WATER IN YOUR LEISURE VEHICLE TO THE TEMPERATURE YOU NEED AND HELPS CONSERVE WATER.
Ideal for use with Pressure Switch or Microswitch Systems where shower installation space is at a premium
Retractable hose makes for neat storage when shower is not in use
Water flow can be temporarily shut off at shower head to maintain mix setting
One unit can be used as either a worktop mounted tap or a ‘pull up style’ shower
1.7 m (5’ 7”) long hose
Connects directly to Whale Quick Connect 12 mm plumbing
For systems operating at up to 2.4 bar (35 psi)
Description : Mixer Combination Tap /Shower with Wall Bracket
Colour : White
Base Plate (mm) : 164 x 55 mm (6 ⁷⁄₁₆” x 2 ⅛”)
Depth Beneath Surface : 108 mm (4 ¼”)
Connection to Quick Connect 15 mm : WX1512
Connection to 10 mm (⅜“) Flexible Hose : WU1280 / WU1204
Connection to 13 mm : WU1282 / WU1204
