Description
GROOVED, PRESSURE, SWITCH (M400)
BOX QUANTITY : 10 or 50

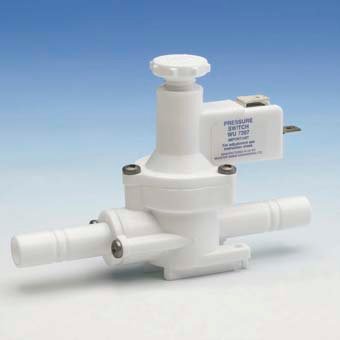

INLINE PRESSURE SWITCH
FITTING AN INLINE PRESSURE SWITCH ALLOWS REGULATION OF THE PRESSURE IN YOUR LEISURE VEHICLE’S WATER SYSTEM. IT CAN BE USED WITH EITHER SUBMERSIBLE OR INLINE SELF VENTING PUMPS.
Adjustable cut in / cut out pressure setting
Suitable for installation into 12mm Whale Quick Connect or ½” flexible hose systems
Controls the pump turning it on and off by sensing changes in water system pressure
Recommended for use with Whale submersible and inline booster pumps
Weight : 0.063 kg (0.14 lbs)
Hose Connections : Suitable for Whale Quick Connect 12 mm and 10 mm ( ⅜”) Flexible Hose
Materials : Body: Acetal, Seals and Valves: Nitrile®, EPDM Spring:
Phosphor Bronze, Fasteners: Stainless Steel
Current Rating : 10 amp: 12 V d.c. systems, 5 amp: 24 V d.c. systems
Maximum Pressure : 2 bar (30 psi)
MARINE
For use with submersible or inline self venting pumps in a pressurized water system
Controls the pump by sensing changes in system pressure
Note: must be mounted in a vertical position
