Description
WATERMASTER®, IC PUMP, CONTROLLER KIT (M193)
Box Quantity: 15
THE WATERMASTER IC UNIT INTELLIGENTLY CONTROLS THE SUBMERSIBLE PUMP FOR TROUBLE FREE OPERATION AND PEACE OF MIND. NEVER ADjUST YOUR PRESSURE SWITCH AGAIN!
Stops the pump pulsating at high voltages
Stops the pump running continuously at low voltages
Detects when the water container has run dry and turns pump off
Surge damper no longer required
Protects and prolongs the submersible pump
Helps lengthen battery life
Built-in fault diagnostics system
Service free, one-step calibration process

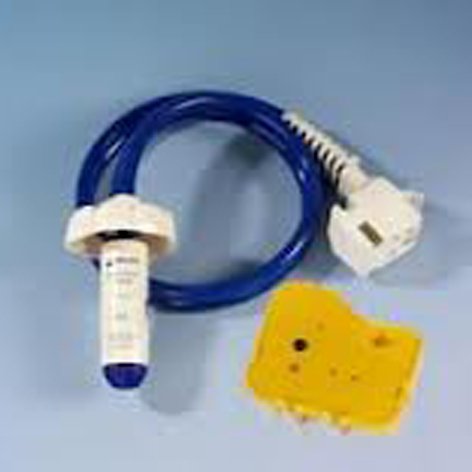

KIT INCLUDES:
Watermaster IC unit
Watermaster High Flow submersible pump
Weight: 0.65kg (1.4 lbs)
Voltage: Voltage range 9.5V d.c. to 14.5V d.c. (normal operation) / Voltage range 8.5V d.c. to 9.5V d.c. (limited operation)
Fuse Size: 5 amp / automotive
Materials
Pump body: ABS, Seals: Nitrile®, Strainer: Polypropylene, Impeller: PBT, Cable: PVC, Seal: Nitrile®,
Wire: PVC insulated copper, Hose: PVC, Plug: PBT, Watermaster IC: Polycarbonate
Nominal Current: Operating 3.7 amps, Standby 0.007 amps
Operating Temperature Range: 3˚C to 40˚C
Storage Temperature Range: -30˚C to 60˚C
Accessories: WF1230 – 12mm inline water filter
PERFORMANCE
Max Discharge Head:Flow rate / Current draw at 12V d.c.
0 m (0ft) 15.8 ltrs/min (3.8 amps)
1 m (3ft) 14.8 ltrs/min (3.7 amps)
3 m (9ft) 12.8 ltrs/min (3.5 amps)
WHALE WATERMASTER IC IS COMPATIBLE WITH AND EASILY RETROFITTED TO A WHALE WATERMASTER PRESSURE SWITCH SOCKET AND A WHALE WATERMASTER HIGH FLOW PUMP (EP1612) ONLY.
