Description

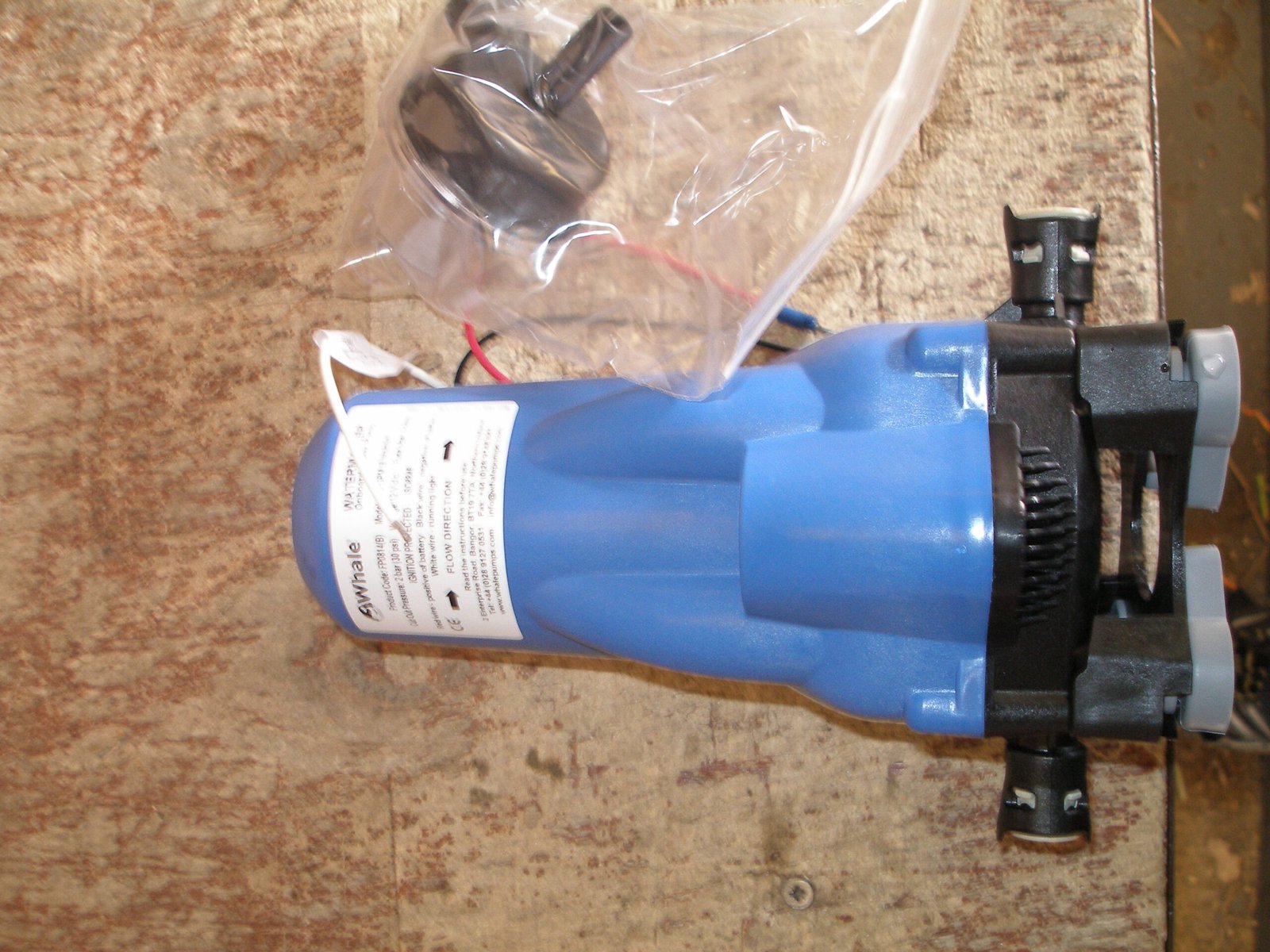

WATERMASTER® ONBOARD WATER PUMP (M005 retail option – boxed / M005S service option)
Box Quantity – RETAIL BOXED : 1
Box Quantity – SERVICE ENGINEER ITEM – not boxed : 10
THE WATERMASTER ONBOARD PUMP DELIVERS A SMOOTH, CONSISTENT FLOW OF WATER TO YOUR LEISURE VEHICLE AND CAN RUN DRY WITHOUT DAMAGE.
Vertically mounted to fit into tight spaces
Quick Connect 12mm ports for faster installation
Rubber feet to absorb vibrations
Fully sealed, protective motor housing
Weigh: 1.48kg (3.2 lbs)
Voltage: 12V d.c.
Fuse Siz: 5 amp automotive
Open Flow Rat: 8 ltrs/min
Cut Out Pressur: 2 bar (30psi)
Current Draw: 4 amps
Inlet/Outlet Siz: Whale® Quick Connect™ 12 mm Female
Hose Connections
For ½” flexible hose use WU1282 (supplied with pump)
For ⅜” flexible hose use WU1280 (not supplied with pump)
Semi-rigid Pipework: For Whale Quick Connect 12mm NO ADAPTOR REQUIRED
System Connections: 12mm semi-rigid pipe WX7112 (not supplied with pump)
Material: Glass-filled Polypropylene, Monprene® Nitrile®, Stainless Steel
Max. Wire Size: 2.5 mm2 (13AWG)
Max. Discharge Head: 20 m (66 ft)
Max. Suction Lift: 3 m (10 ft)
Service Kits: Microswitch Kit AK1317, Full head service kit AK1318
THE WATERMASTER ONBOARD PUMP DELIVERS A SMOOTH, CONSISTENT FLOW OF WATER TO YOUR LEISURE VEHICLE AND CAN RUN DRY WITHOUT DAMAGE.
Please note: Pump performance may vary depending on the plumbing system and restrictions on outlets in your leisure vehicle.
